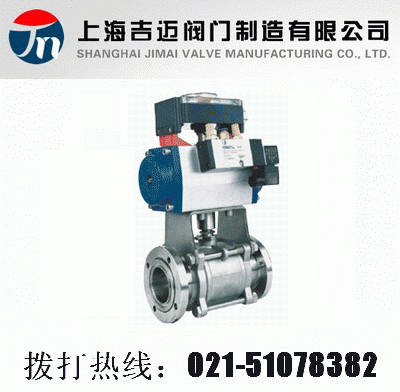

GUQ型－氣動高真空球閥
|
|
|
|
|
■
|
GUQ型氣動高真空(壓力)球閥是通過電磁換向閥改變氣路方向，控制執(zhí)行氣缸來驅動球閥，達到接通或切斷真空(壓力)系統(tǒng)管道路中的介質流。應用于真空、乳制品、酒業(yè)、生物工程、食品、制藥、飲料、化妝品及化工領域。可選配反饋信號裝置及電氣閥門定位器。
|
|
|
|
|
■
|
GUQ
Pneumatic High Vacuum(Pressure)Ball Valve
|
|
|
|
|
■
|
Rack-and Pinion system owners, nonprofit organizations, and office workers who produced in-house newsletters, bulletins, and the like, and who mostly used Windows-based Purchase. Orkers who produced in-house newsletters, bulletins, and the like, and who mostly used Windows-based Purchase and fixed position of the electricity valve machine.
|
|
|
|
|
■
|
主要技術性能
Main Technical Performance
|
|
|
|
|
■
■
■
|
|
閥門漏率：Valve Leak Rate
|
≤1.3×10-4Pa.L/S.
|
|
適用溫度：Applicable Temperature
|
-30～+150℃
-30～+150℃(PPL密封)
|
|
氣源壓力：Annoy pressure
|
0.4～0.6MPa
|
|
適用范圍：Applicability
|
|
連接型式 Loose Flange
|
使用壓力范圍(Pa)
|
|
活套法蘭(GB6070)
|
0.6×106～1.3×10-4
|
|
焊接法蘭(GB6070)
|
1.6×106～1.3×10-4
|
|
快卸法蘭(GB4982)
|
0.1×106～1.3×10-4
|
|
螺紋連接 Threaded Connection
|
1.6×106～1.3×10-4
|
|
|
|
|
|
■
|
主要零件材料
Materials of Main Parts
|
|
|
|
|
■
■
|
閥體、閥蓋、閥桿：不銹鋼
密封件：四氟乙烯、丁腈橡膠、氟橡膠、PPL。
Body, disc and stem: stainless steel.
Sealing element: PTFE, NBR, Viton, PPL.
|
|
|
|
|
CONSTRUCTION FIGHTS (mm)
|
|
|
|
■
|

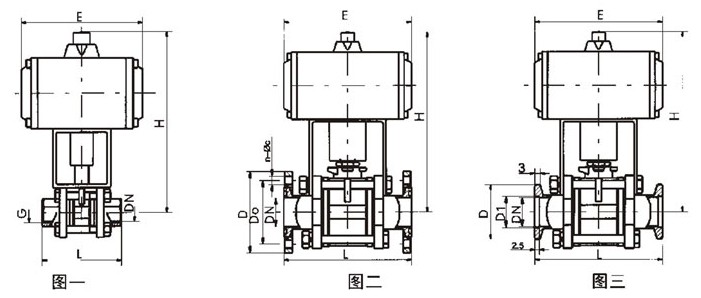

外形及連接尺寸(mm)(JB919)
Overall and Connection Dimensions(mm)
|
|
|
|
■
|
螺紋連接的外形及連接尺寸(圖一)
|
|
|
|
Model
型號
|
DN
|
G
|
H
|
E
|
L
|
|
GUQ-10(G)
|
10
|
1/4"
|
153
|
104
|
68
|
|
GUQ-16(G)
|
16
|
1/2"
|
155
|
104
|
72
|
|
GUQ-20(G)
|
20
|
3/4"
|
160
|
104
|
82
|
|
GUQ-25(G)
|
25
|
1"
|
163
|
140
|
90
|
|
GUQ-32(G)
|
32
|
1-1/4"
|
180
|
140
|
112
|
|
GUQ-40(G)
|
40
|
1-1/2"
|
186
|
140
|
120
|
|
GUQ-50(G)
|
50
|
2"
|
233
|
164
|
145
|
|
GUQ-63(G)
|
63
|
2-1/2"
|
272
|
164
|
185
|
|
GUQ-80(G)
|
80
|
3"
|
351
|
190
|
210
|
|
GUQ-100(G)
|
100
|
4"
|
370
|
190
|
268
|
|
|
|
■
|
活套法蘭連接(GB6070)(圖二)
|
|
|
|
Model
型號
|
DN
|
D
|
Do
|
H
|
E
|
L
|
n-φc
|
|
GUQ-10(F)
|
10
|
55
|
40
|
153
|
105
|
84
|
4-φ6.6
|
|
GUQ-16(F)
|
16
|
60
|
45
|
155
|
130
|
84
|
4-φ6.6
|
|
GUQ-25(F)
|
25
|
70
|
55
|
163
|
165
|
114
|
4-φ6.6
|
|
GUQ-32(F)
|
32
|
90
|
70
|
180
|
165
|
140
|
4-φ9
|
|
GUQ-40(F)
|
40
|
100
|
80
|
186
|
190
|
160
|
4-φ9
|
|
GUQ-50(F)
|
50
|
110
|
90
|
233
|
190
|
170
|
4-φ9
|
|
GUQ-63(F)
|
63
|
130
|
110
|
272
|
250
|
195
|
4-φ9
|
|
GUQ-80(F)
|
80
|
145
|
125
|
351
|
250
|
203
|
8-φ9
|
|
GUQ-100(F)
|
100
|
165
|
145
|
370
|
280
|
280
|
8-φ9
|
|
|
|
■
|
快卸法蘭連接(GB4982)(圖三)
|
|
|
|
Model
型號
|
DN
|
D1
|
D
|
H
|
E
|
L
|
|
GUQ-10(KF)
|
10
|
12.2
|
30
|
153
|
104
|
84
|
|
GUQ-16(KF)
|
16
|
17.2
|
30
|
155
|
104
|
84
|
|
GUQ-25(KF)
|
25
|
26.2
|
40
|
163
|
140
|
114
|
|
GUQ-32(KF)
|
32
|
34.2
|
55
|
180
|
140
|
140
|
|
GUQ-40(KF)
|
40
|
41.2
|
55
|
186
|
140
|
160
|
|
GUQ-50(KF)
|
50
|
52.2
|
75
|
233
|
164
|
170
|
|
|
